Fasteners series 8000 for cold room doors

For overlapping doors, For semi-rebated doors

Available versions: 3 Available kit: 13

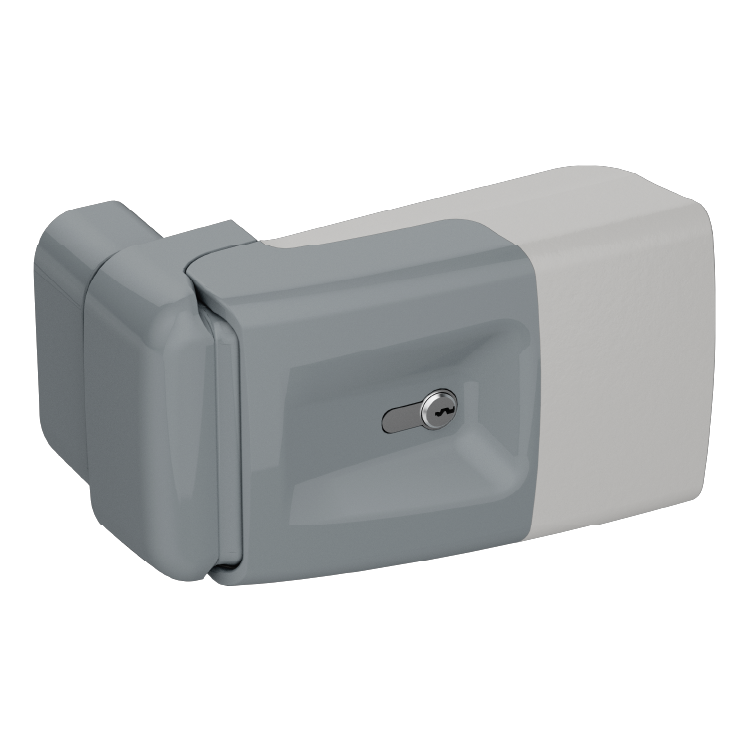

Fasteners series 8000 for cold room doors

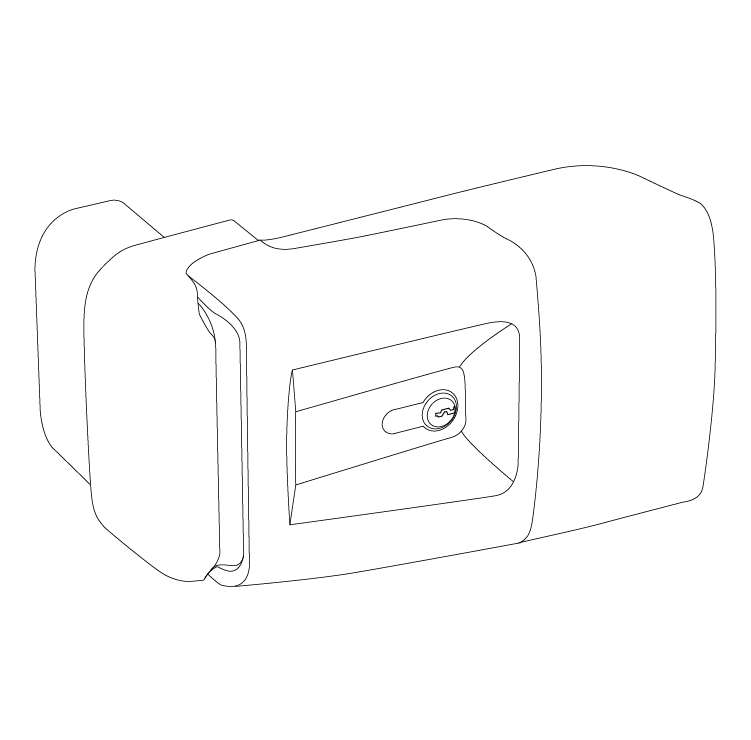

Fasteners series 8000 for cold room doors wireframe

Images

3D view

Available versions: 3 Available kit: 13

Description

Patented Series 8000 fasteners for cold room doors, featuring an automatic latching system and made from high-performance composite material with excellent resistance to low temperatures and corrosion

Features

Fastening points 1
In compliance with EN 179 rules
Horizontal adjustment
Vertical adjustment
Depth adjustment

Suitable for

Door Type For overlapping doors, For semi-rebated doors
Door weight 80 kg
Cold room temperature -30/40 °C
Door height 500/2500 mm
Door width 500/1500 mm
Door thickness 50/150 mm
Door offset 27/162 mm
Opening direction L, R
Fastener with key Yes

Focus

Inside release push-button

Versions Fasteners series 8000 for cold room doors3

Product number R022127

Additional features

Without key
In compliance with CE EN 179:2008
No reinforcement needed in the door leaf panel
Photoluminescent inside release push-button

Product number R022128

Additional features

With key
Europrofile cylinder (master key on request)
In compliance with CE EN 179:2008
No reinforcement needed in the door leaf panel
Photoluminescent inside release push-button

Product number R022134

Additional features

With key
Door offset 27/42 mm
Europrofile cylinder (master key on request)
In compliance with CE EN 179:2008
No reinforcement needed in the door leaf panel
Photoluminescent inside release push-button

Available kit for series 8000

Code

Description

Code

R022129

KIT 8000 door leaf thickness 50/69 mm

Code

R022130

KIT 8000 door leaf thickness 70/89 mm

Code

R022131

KIT 8000 door leaf thickness 90/109 mm

Code

R022132

KIT 8000 door leaf thickness 110/129 mm

Code

R022133

KIT 8000 door leaf thickness 130/150 mm

Code

R020320

Shim 8000 door offset 42/57 mm

Code

R020321

Shim 7000 door offset 57/72 mm

Code

R020322

Shim 7000 door offset 72/87 mm

Code

R020323

Shim 7000 door offset 87/102 mm

Code

R020324

Shim 8000 door offset 102/117 mm

Code

R020325

Shim 8000 door offset 117/132 mm

Code

R020326

Shim 8000 door offset 132/147 mm

Code

R020327

Shim 7000 door offset 147/162 mm

Complementary series3

Hinges

Learn more

2800B

Hinges

Available versions: 6

Max door weight 50kg

Suitable for door type Overlapping doors, Semi-rebated doors

Adjustable

Material Composite material

Hinges

Learn more

2800

Hinges

Available versions: 4

Max door weight 80kg

Suitable for door type Overlapping doors

Adjustable

Material Composite material

Hinges

Learn more

2900

Hinges

Available versions: 6

Max door weight 80kg

Suitable for door type Overlapping doors

Adjustable

Material Composite material

If you are in search of a partner for special products and personalised products

Click here

Fasteners series 8000 for cold room doors

For overlapping doors, For semi-rebated doors

Inside release push-button

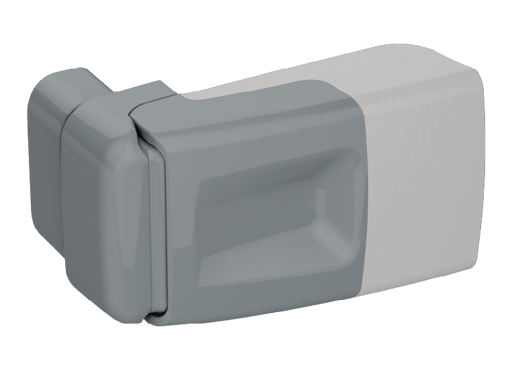

8025
